SG6151 GPON/EPON ONU – 2×GE, POTS, CATV, WiFi 5

Description

Overview

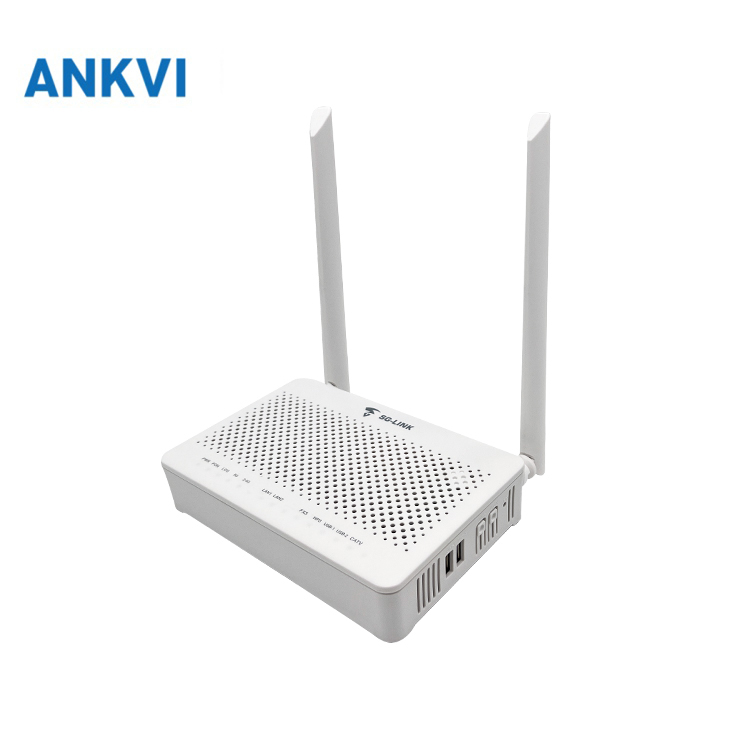

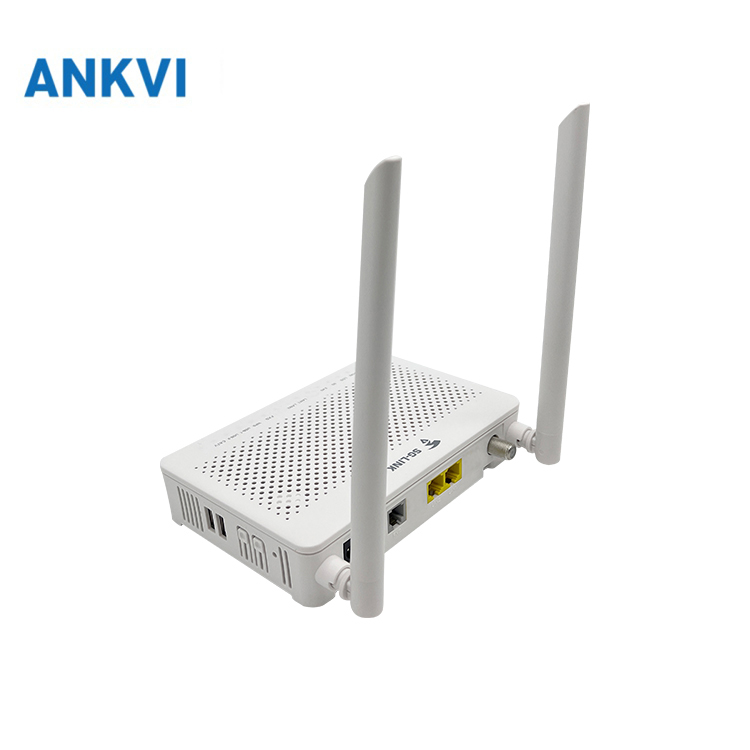

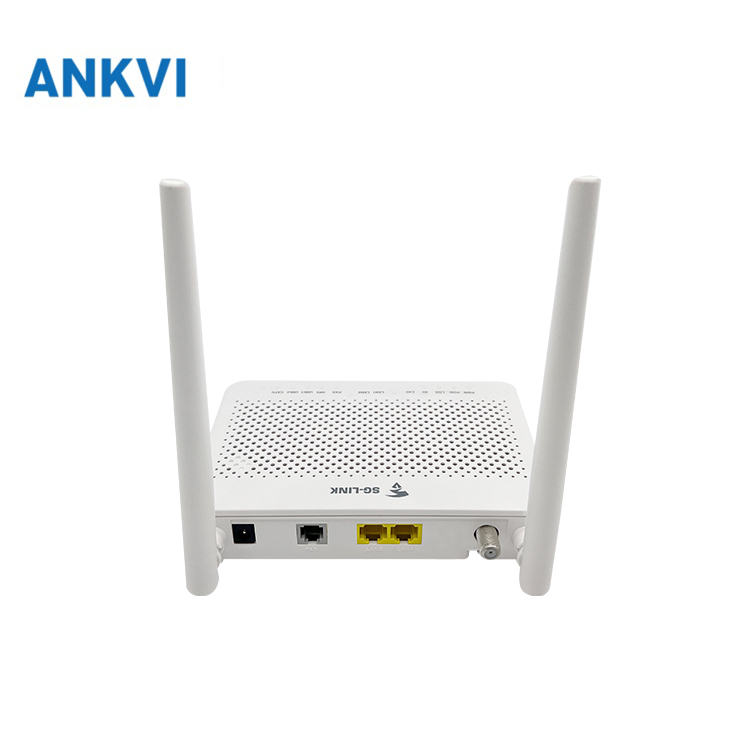

The SG6151 GPON/EPON ONU is a WiFi 5 optical network unit that carries data, voice and TV for the same subscriber. It terminates a single SC/APC PON uplink and combines two gigabit Ethernet ports, one POTS voice port, a CATV RF output, dual USB ports and dual-band WiFi in one desktop unit, so internet, telephony, video and wireless service all arrive over one fibre drop.

It accesses mainstream GPON and EPON OLTs and is tested for interworking with Fiberhome AN5516, ZTE C220/C300/C320/C600 and Huawei MA5600/MA5680/MA5800 platforms. Voice runs over SIP with IMS compatibility, G.711 / G.722 / G.729 codecs and T.30 / T.38 fax support, the CATV port supports remote management of the RF output, and the data side covers bridge, router and mixed modes, NAT, ALG, UPnP, DMZ, DHCP/DHCPv6, PPPoE, static IP, 4K VLAN and IPv4/IPv6 dual stack; WEB, TELNET, CLI, OAM, OMCI and TR069 handle remote management.

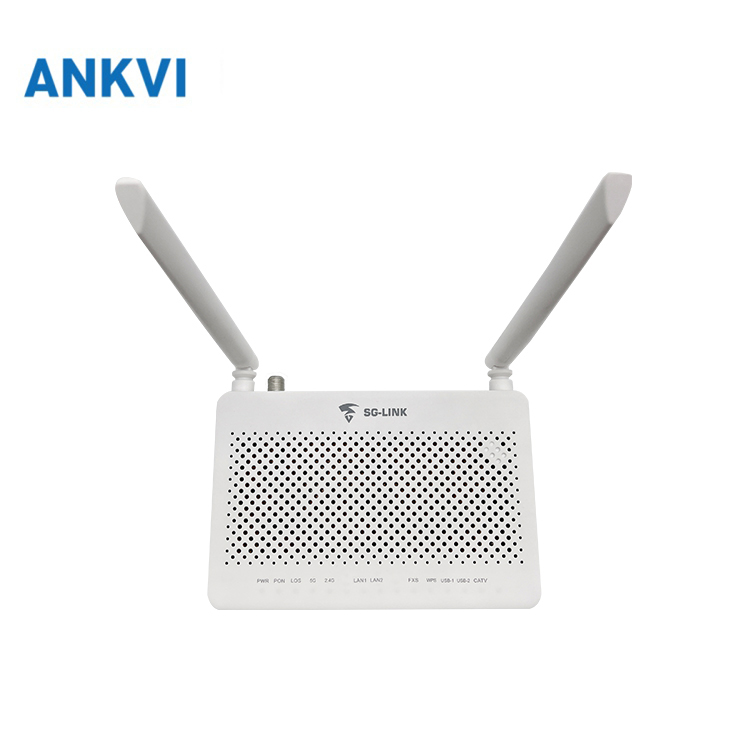

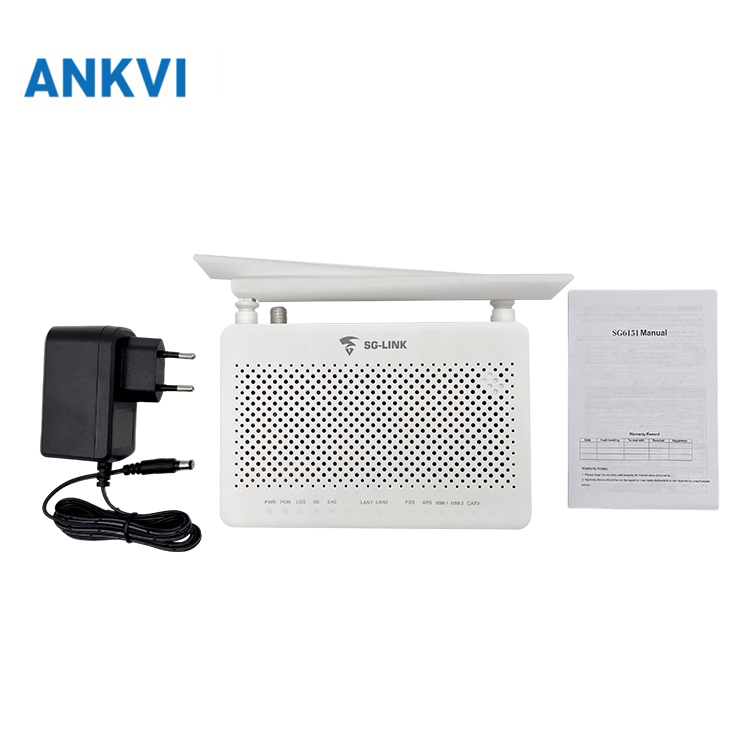

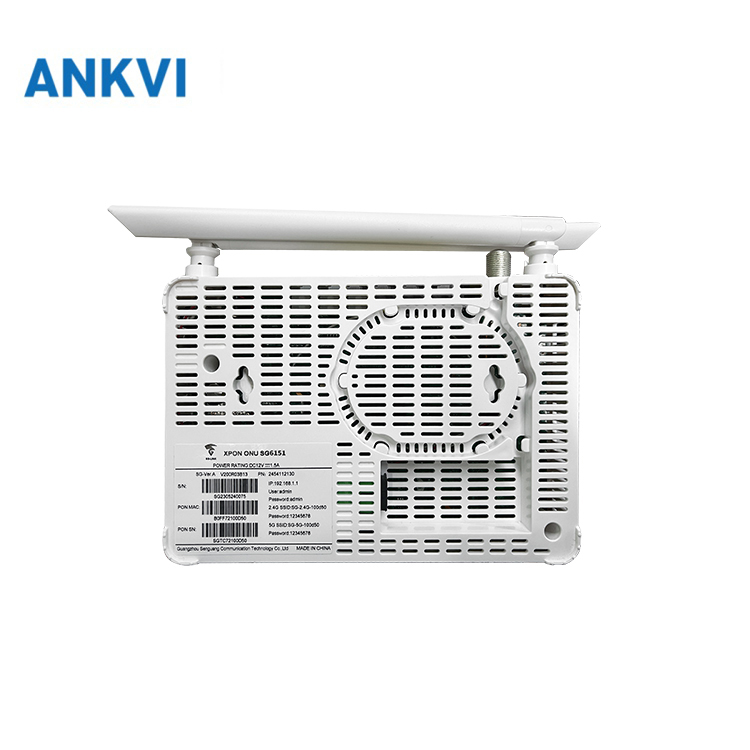

The unit measures 205 × 136 × 24 mm, weighs under 250 g without its adapter, runs on 12 V 1.5 A and consumes less than 12 W. Front indicators cover PWR / PON / LOS / 5 GHz WiFi / 2.4 GHz WiFi / LAN1-2 / FXS / WPS / USB1-2 / CATV, and an operating range of −5 °C to +45 °C at 10 % to 90 % non-condensing humidity suits desktop or cabinet installation in subscribers’ premises.

SG6151 Key Features

• Single GPON/EPON uplink — SC single mode, SC/APC — with a 20 km transmission distance
• GPON Class B+ / EPON PX20+ with TX power 0 to +4 dBm, RX sensitivity −27 dBm and overload power −8 dBm (GPON) / −3 dBm (EPON)
• Authentication by SN / Password / LOID (GPON) and MAC / Key / LOID (EPON); two-way FEC, SR/NSR DBA and GEM/TCONT mapping
• Triple-play ready: two 2 × GE ports, one POTS voice port and a CATV RF output on the same ONU
• One POTS voice port over SIP (IMS compatible) with heartbeat function and active / standby call agent
• Voice enhancement with G.711 / G.722 / G.729 codecs and auto-negotiation; T.30 / T.38 fax and 56 Kbps dial modem access
• Echo cancellation exceeding ITU-T G.165 / G.168-2002 with up to 128 ms tail length; line testing according to GR-909
• Voice services including MD5 authentication, call forwarding, calling, hot-line and alarm clock, plus silence detection and multi-party conferencing
• CATV RF output supporting CATV remote management, with RF and optical power range +2 to −18 dBm and RF frequency range 47 to 1000 MHz
• CATV optical receiving wavelength 1550 ± 10 nm, optical reflection loss ≥ 45 dB and 75 Ω RF output impedance
• Dual-band WiFi 5 (IEEE 802.11 b/g/n/ac), 2T2R with dual 5 dBi external antennas and MU-MIMO support
• 2.4 GHz (2.400 to 2.483 GHz) and 5.0 GHz (5.150 to 5.825 GHz) operation, 13 channels with adjustable wireless selection
• Wireless AP mode, WMM support, multiple concealed SSIDs, and WiFi EasyMesh function
• Dual USB ports for shared storage / printer / console, with FTP network storage
• Bridge, router and bridge/router mixed mode; DHCP, DHCPv6, PPPoE, static IP and static routing
• NAT, ALG, UPnP, DMZ, firewall and port forwarding; one WAN for multiple services and virtual server
• 4K VLAN and 2K MAC address table; VLAN tag / untag / transparent / trunk mode and VLAN 1:1 translation (≤ 8 VLANs)
• IGMP and MLD (v1/v2/v3) snooping and proxy with up to 8 multicast VLANs, 64 multicast groups and fast leave, plus WiFi bearer multicast
• Management through WEB / TELNET / CLI / TR069, ITU-T G.984.x OMCI and CTC 3.0; anti-DDoS and IPv6 firewall protection

SG6151 Specifications

Device Parameters

Parameter	Value	Parameter	Value
Dimension	205 mm × 136 mm × 24 mm	Temperature	−5 °C to +45 °C
Weight	< 250 g (without power adapter)	Humidity	10 % to 90 % (no condensing)
Power Supply	12 V 1.5 A	Interface	2GE + 1POTS + 1CATV + WiFi 5 + 2×USB
Power Consumption	< 12 W	Indicators	PWR / PON / LOS / 5 GHz WiFi / 2.4 GHz WiFi / LAN1-2 / FXS / WPS / USB1-2 / CATV

PON Interface

Item	Specification
OLT compatibility	Accesses mainstream GPON/EPON OLTs
Standards	GPON Class B+ / EPON PX20+
Optical connector	SC single mode, SC/APC
Wavelength	TX 1310 nm, RX 1490 nm
Transmission distance	Up to 20 km
TX power	0 to +4 dBm
RX sensitivity	−27 dBm
Overload power	−8 dBm (GPON), −3 dBm (EPON)
Authentication	SN / Password / LOID (GPON) · MAC / Key / LOID (EPON)
PON features	Two-way FEC, SR/NSR DBA, GEM/TCONT mapping

LAN Interface

Item	Specification
Ethernet port	2 × GE, auto-negotiation RJ45 connectors
MAC address	Restriction and learning capabilities
VLAN	Ethernet port-based VLAN tag / tag stripping, local switching and isolation
Layer 2	Pass-through support
Protection	Storm control, loop detection and flow control

WiFi Interface

Item	Specification
Standard	Compliant with IEEE 802.11 b/g/n/ac
Operating frequencies	2.4 GHz (2.400 to 2.483 GHz) and 5.0 GHz (5.150 to 5.825 GHz)
Channels	13 channels with adjustable wireless selection
Modes	Wireless AP mode and Wi-Fi Multi Media (WMM) support; multiple concealed SSIDs
Antennas	2T2R with dual 5 dBi external antennas
TX power	11n – 20 dBm / 11ac – 23 dBm
Encryption	WEP-64 / WEP-128 / WPA / WPA2 / WPA3
Authentication	WEP / WPA-PSK (TKIP) / WPA2-PSK (AES)
Modulation	DSSS, CCK, OFDM, with OFDMA support
Encoding	BPSK, QPSK, 16QAM, 64QAM, 1024-QAM
Advanced	MU-MIMO, dynamic QoS and WiFi EasyMesh function
WPS	WPS support

CATV Interface

Item	Specification
Remote management	Supports CATV remote management
RF and optical power range	+2 to −18 dBm
RF frequency range	47 to 1000 MHz
RF output impedance	75 Ω
Optical receiving wavelength	1550 ± 10 nm
Optical reflection loss	≥ 45 dB
RF output level and AGC range	83 dBuV @ 0 to −10 dBm / 81 dBuV @ −1 to −11 dBm / 79 dBuV @ −2 to −12 dBm / 77 dBuV @ −3 to −13 dBm / 75 dBuV @ −4 to −14 dBm / 73 dBuV @ −5 to −15 dBm
MER	≥ 32 dB (−14 dBm optical input), > 35 dB (−10 dBm)

VoIP Interface

Item	Specification
Voice enhancement	Supports G.711 / G.722 / G.729 codecs, with auto-negotiation
Fax	Supports T.30 / T.38, high / low speed, bypass and T.38 fax
Modem	High-speed (56 Kbps) dial access
Call protocol	SIP (IMS compatible), compatible with popular call agents
Call agents	Supports both SIP and IMS SIP, with heartbeat function and active / standby call agent
Echo cancellation	Exceeds ITU-T G.165 / G.168-2002, up to 128 ms tail length
Line testing	According to GR-909 standard
Voice services	MD5 authentication, call forwarding, calling, hot-line, alarm clock and more
Conference and tone	Silence detection, multi-party conferencing, loss compensation, local exchange

USB Interface

Item	Specification
Ports	Dual USB ports
Network storage	Supports FTP network storage
Sharing	Dual USB ports for shared storage / printer / console

Function

Category	Specification
Basic	SN / Psw / LOID / LOID+Psw authentication (GPON) and Mac / LOID / Mac+LOID authentication (EPON); DBA; auto-detecting, auto-configuration and auto firmware upgrade; support triple churning
Alarm	Dying gasp, port loop detect and EthPort LOS
Compatibility	Interworking with Fiberhome AN5516, ZTE C220 / C300 / C320 / C600 and Huawei MA5600 / MA5680 / MA5800
L2	802.1D & 802.1ad bridge, 802.1p CoS, 802.1Q VLAN; rich QinQ VLAN functions and IGMP snooping multicast features
L3	DNS, DNS client, DDNS / DNS server; DHCP, DHCPv6, PPPoE, static IP, IPv4/IPv6 dual stack and static routing; NAT, ALG, UPnP, DMZ; firewall and port forwarding; one WAN for multiple services; virtual server; ACL and spanning tree; DHCP server and DHCP relay; VxLAN, EoIP, L2TP and IPSec VPN

Data Service, Multicast, VLAN and QoS

Area	Specification
Data service functions	Full-speed non-blocking switching; bridge, router and bridge/router mixed mode; IGMP v1/v2/v3 snooping / proxy and MLD v1/v2 snooping / proxy; QinQ VLAN, 1:1 VLAN, VLAN reusing and VLAN trunk; auto polarity detection of Ethernet ports (AUTO MDIX); port monitoring, rate limiting and SLA; integrated IEEE 802.1p QoS with four-level priority queues; 4K VLAN ID; 2K MAC address table
Multicast	IGMP and MLD (v1/v2/v3) snooping and proxy; max 8 multicast VLANs; max 64 multicast groups; fast leave; downlink multicast VLAN switching / transmission / stripping; WiFi bearer multicast services
VLAN	4K VLAN; auto VLAN detection; VLAN tag, untag, transparent and trunk mode; VLAN 1:1 translation mode (≤ 8 VLANs)
QoS	Four queues including SP, WRR and 802.1P; SP, WRR, 802.1P and DSCP; flow mapping based on VLAN, 802.1p, Ethernet port or any combination; broadcast message rate limiting
O&M	Loop detection; WEB / TELNET / OAM / OMCI / TR069; software dual backup and rollback; optical link measurement and diagnosis; integrated OAM / OMCI remote configuration and maintenance; detecting rogue ONU and hardware dying gasp

Management, O&M and Security

Area	Specification
Management	WEB / TELNET / CLI / TR069; ITU-T G.984.x OMCI; CTC 3.0, backward compatible with 2.1 / 2.0
Security	Anti-DDoS filtering based on ALC / MAC / URL; flow and storm control; loop detection; IPv6 firewall; MAC / IP / URL address filtering

Deployment Scenarios

• Triple-play FTTH access combining internet, telephony and IPTV for high-end homes
• CATV-over-fibre networks that also carry a voice line and wireless service
• SMB and SOHO sites with several wired clients, a SIP telephone line and shared USB storage
• Hospitality and campus networks — hotels, guest houses and business parks — needing in-room voice, TV and WiFi
• Bulk ISP rollouts that need OMCI / TR069 remote provisioning, auto-configuration and auto firmware upgrade
