XRT-MS-017 Vertical Splice Closure – 12-48 Cores, IP68
XRT-MS-017 vertical fiber optic splice closure holds 12 to 48 cores with IP68 heat shrinkable sealing, one oval inlet and five round outlets for aerial, duct and buried joints.
Description
Overview

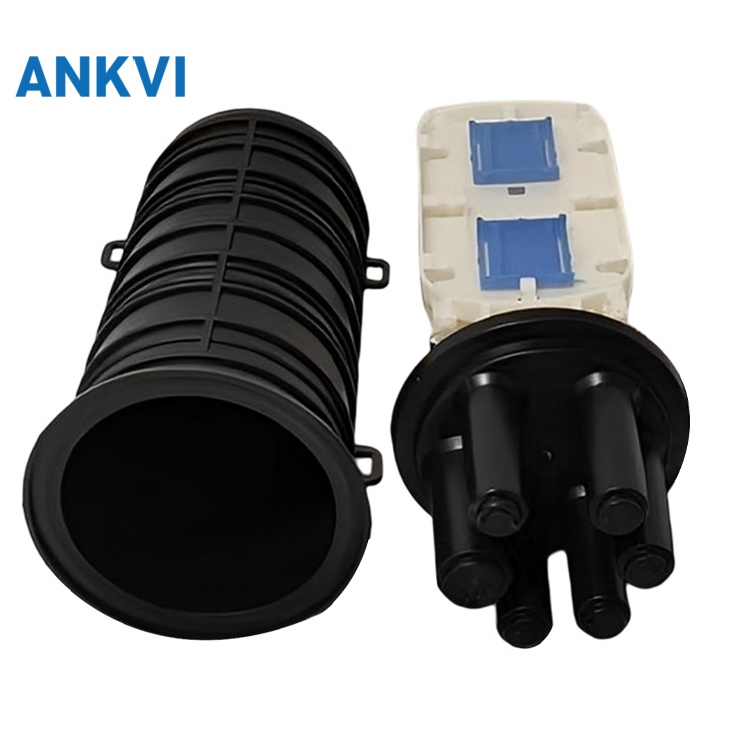

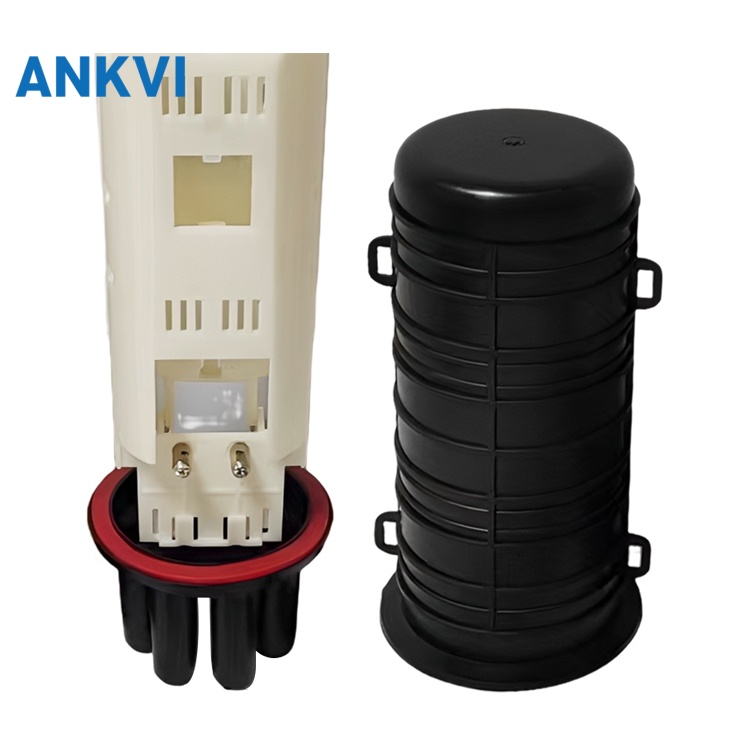

The XRT-MS-017 is a vertical fiber optic splice closure used for direct connection and large capacity discontinuous connection of optical fiber cable, protecting the cable joints inside the housing.
It uses heat shrinkable sealing with repeatable opening seal components, and all kinds of accessories can be configured. The closure can be mounted on a pole or buried, and meets the construction requirements for underground, pipeline and well installation.
XRT-MS-017 Key Features
- Heat shrinkable sealing with repeatable opening seal components keeps every cable joint airtight and waterproof

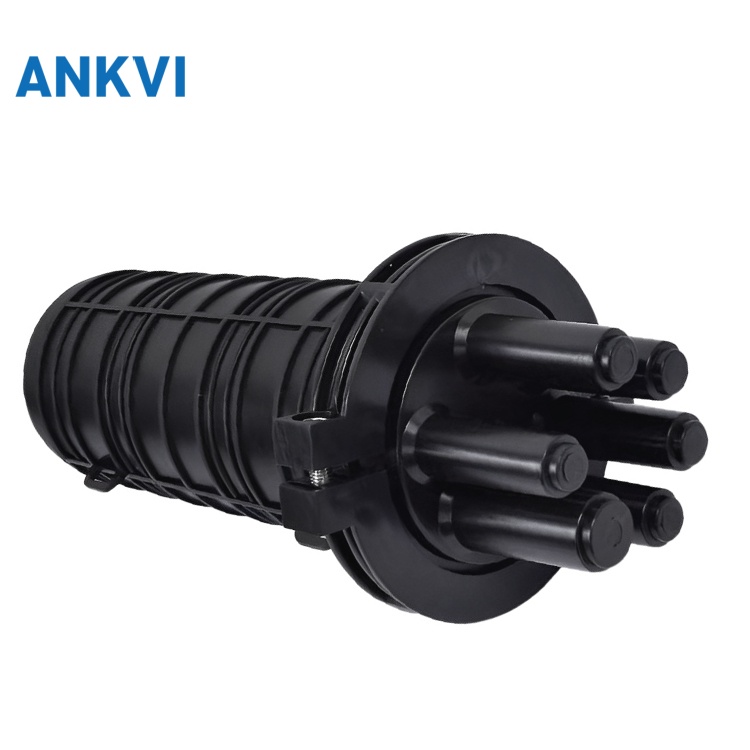

- Five round outlets on the end plate for splitting a single feeder into many drop cables
- Aging resistance with good stability to heat, heat radiation, air and ozone
- Corrosion resistance to dilute acid, salt, oxidizing agent and aliphatic hydrocarbons
- Mechanical strength for vibration, impact, cable tensile distortion and strong temperature change
- Locking device opens repeatedly and needs no special tools
XRT-MS-017 Specifications
Technical Index
| Parameter | Specification |
|---|---|
| Model No. | XRT-MS-017 |
| Color | Black |
| Capacity(Max) | 12cores(12core/tray*1trays) 24oores(24core/tray*1trays) 48cores(24core/tray*2trays) |
| Protection Level | IP68 |
| Material | ABS |
| Inlet/Outlet | 1 inlet 5 outlet |
| Product Size | H330*Φ110mm |
| Scope of inlet (1in) Oval shape | Φ23mm |
| Scope of outet(5out) Round shape | Φ12mm |
| Structure | Heat Shrinkable sealing |
| Package / Carton | 9pcs/carton,49.5*38*46.2CM,11kgs |
Applications
- FTTH project and FTTX Deployments
- Optical LAN, WAN and CATV
- Telecommunication Network
- Local Area Network
