OBA Card – DWDM Optical Boost Amplifier, 20 dBm
The OBA Card is an optical boost amplifier module with AGC and APC operation and 1528 to 1565 nm coverage in only 1/4 of a standard slot.
Description
Overview

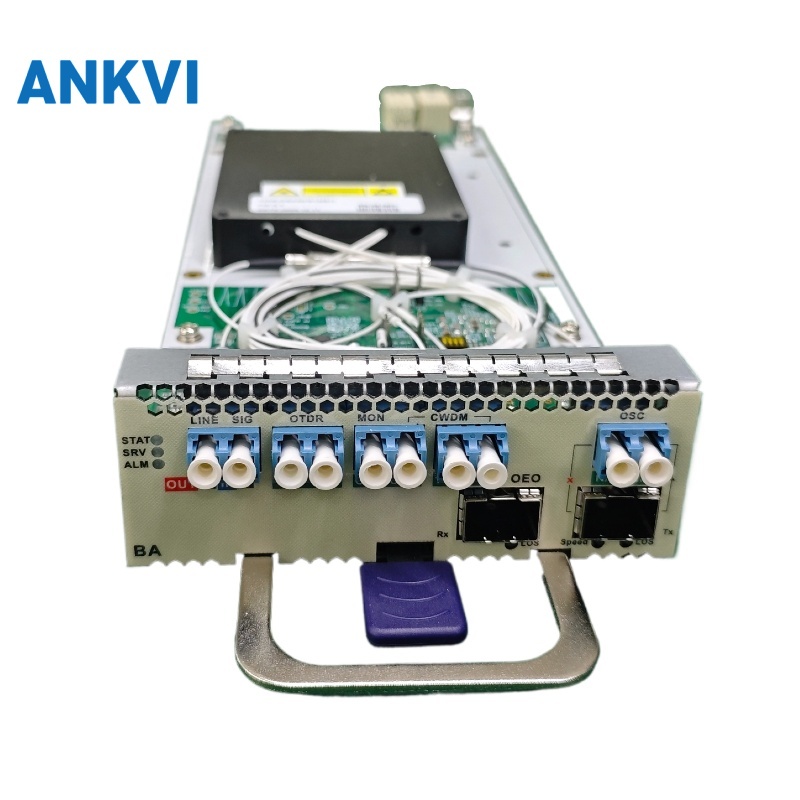

The OBA Card is the Optical Boost Amplifier Module of a DWDM system. It delivers a versatile, low-noise solution for erbium-doped fibre amplification in a highly integrated, compact module.
It operates with constant gain (Automatic Gain Control, AGC) and constant output power (Automatic Power Control, APC). The large-format module supports dual amplifiers with two independent gain units and occupies only 1/4 standard slot capacity.
OBA Card Key Features
- Optical boost amplifier module for the transmit side of a DWDM link
- Dual amplifiers with two independent gain units
- Constant gain (AGC) and constant output power (APC) operation
- Occupies only 1/4 standard slot capacity
- Operating wavelength 1528 to 1565 nm
- Output light power up to 20 dBm, gain from 8 to 33 dB
- Noise factor 5.0 dB with gain flatness 1.0 dB
- Input threshold -34 dBm, adjustable
- Polarization-related loss 0.3 dB and polarization-dependent gain 0.4 dB
- Return loss 45 dB with pump leakage of -29 dBm
OBA Card Specifications
Technical Specifications
| Performance Parameter | Value |
|---|---|
| Operating Wavelength | 1528 to 1565 nm |
| Output Light Power | 20 dBm |
| Gain | 8 to 33 dB |
| Noise Factor | 5.0 dB |
| Gain Flatness | 1.0 dB |
| Input Threshold | -34 dBm, adjustable |
| Polarization-related Loss | 0.3 dB |
| Polarization-dependent Gain | 0.4 dB |
| Polarization Mode Dispersion | 0.5 ps |
| Pump Leakage | -29 dBm |
| Return Loss | 45 dB |
| Size | 216 (W) x 262 (D) x 40 (H) mm |
| Working Temperature | -10 to 60 ℃ |
| Storage Temperature | -40 to 80 ℃ |
| Relative Humidity | 5% to 95%, no condensation |
| Power Dissipation | ≤30 W |
Deployment Scenarios
- Raising the multiplexed output power before the signal enters the line
- Compensating span loss on the transmit side of a DWDM terminal
- Sites that need AGC or APC operation for a stable output level
- Chassis with limited slot space, because the card needs only 1/4 of a slot
